Combi Plate

TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts. TONRY plate helps to distribute the roof bolt load evenly in all directions to prevent loose strata falling between rock bolts.
Contact Now E-Mail Telephone WhatsApp
Product Details

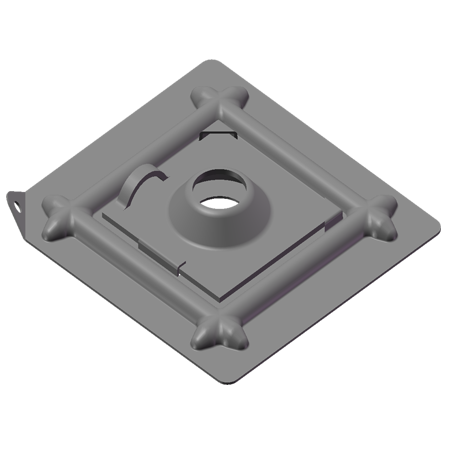

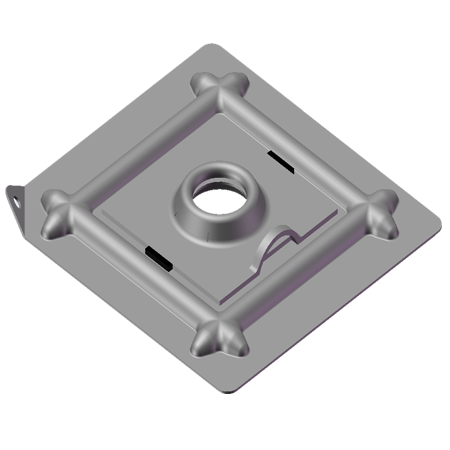

Combi plate

Plate TypeCombi Type

Length

(mm)

Width

(mm)

Thickness

(mm)

Unit weight

(kg)

Dog ear
TRCPTop Plate15015072.17Y
Bottom Plate3002802N
TRCPTop Plate15015052.34Y
Bottom Plate3002802N
TRCPTop Plate15015062.51Y
Bottom Plate3002802N


Features&Advantages

Alternate sizes also available as customer’s requirement.

Used with flat plate or domed plate to increase support capacity.

Two separate plates combine together for one time installation.

Enlarge contact surface area to increase the support effect.

Long hole is used for hanging of service lines.

Available in black or hot dip galvanized.

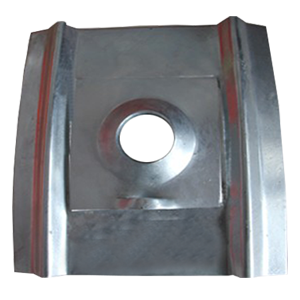

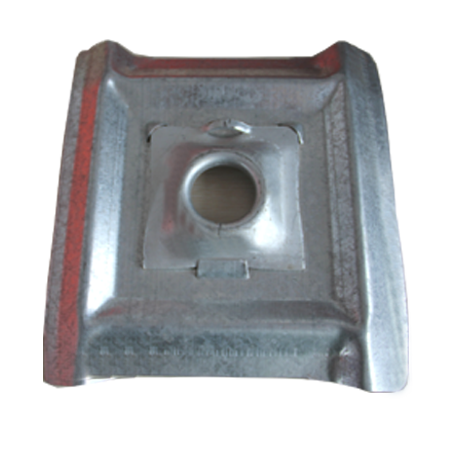

Combi PlateCombi Plate


Package

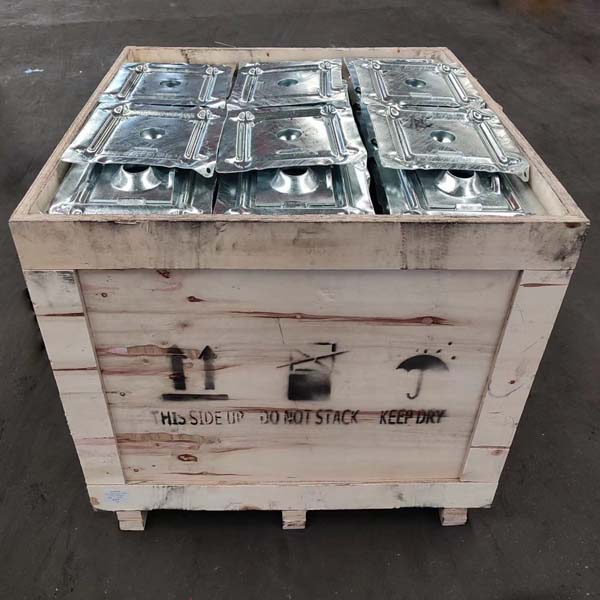

Combi plates are packed with plywood box, steel pallets & wrapping films.


Combi Plate
