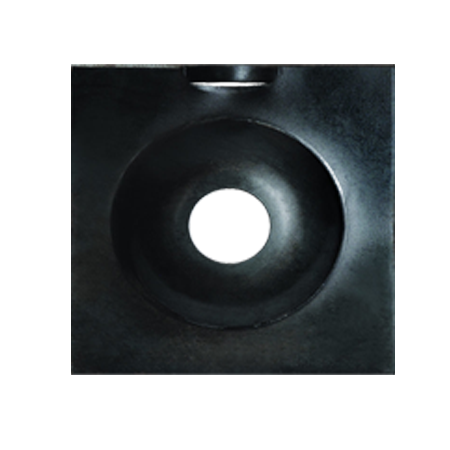

Domed plate 200X200X6

  • -TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts.
  • -The Domed plate 200X200X6 helps to distribute the roof bolt load evenly in all directions to prevent loose strata from falling between rock bolts.
  • -The Domed plate 200X200X6 is made from 120-200 millimeters wide hot rolled steel.
  • -Domed plate 200X200X6 reference to the AS/NZS 1594:2002 standard.
  • -Provide stable support for the bolt even in the rough rock layers.
  • -The galvanized coating is available to protect the plates from corrosion.
Contact Now E-Mail Telephone WhatsApp
Product Details

Domed plate 200X200X6 Specifications

Plate Type

Length

(mm)

Width

(mm)

Thickness

(mm)

Unit weight

(kg)

Dog ear
TRDP12012040.45Y
TRDP12512540.49Y
TRDP15015040.71Y
TRDP15015050.88Y
TRDP15015061.06Y
TRDP15015081.42Y
TRDP150150122.12N
TRDP20020041.26Y
TRDP20020051.57
Y
TRDP2002008
2.51N
TRDP200200103.14N
TRDP200200123.77N
TRDP200200144.40N
TRDP200200165.02N

Domed plate 200X200X6 Features&Advantages



        Custom sizes can be provided to meet specific customer needs.



        The dome-shaped design significantly increases bearing capacity.



        Features a dog ear option for easy hanging of service lines.



        Friction bolt plates come with a hole diameter 2mm larger than the bolt.



        Thread bolt plates feature a hole diameter 4-5mm larger than the bolt, unless used with a dome ball.



        Offered in either a black finish or hot-dip galvanized.




Domed plate 200X200X6 Package

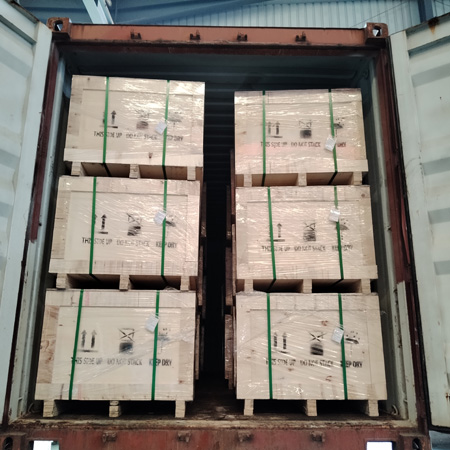

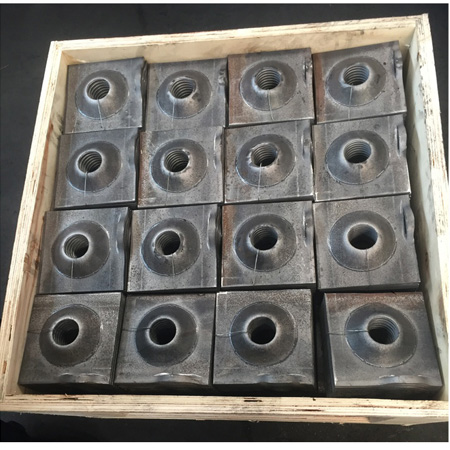

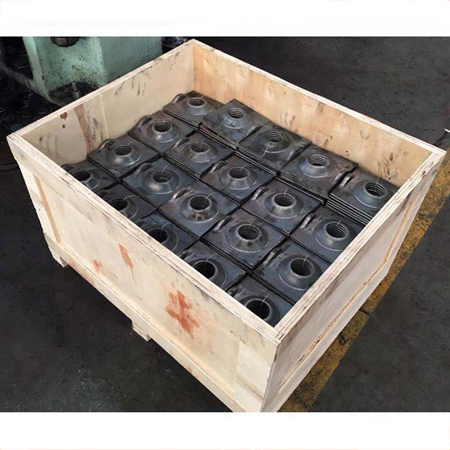

Domed plates are packed with wire slips, plywood box, steel pallets & wrapping films.

                    Domed plate 200X200X6
