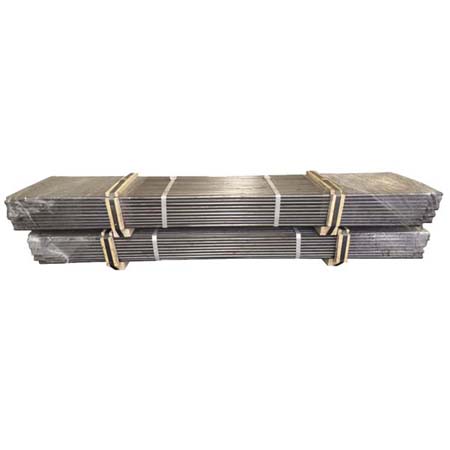

Swellex Hydraulic Bolt

  • -The Swellex Hydraulic Bolt is a friction bolt made from pressed steel tubing.
  • -Swellex Hydraulic Bolt expands and unfolds in the rock hole through the pressure of water.
  • -The installation is convenient and fast and can provide uniform support for the rock strata.
  • -It is suitable for rock strata under various conditions.
Contact Now E-Mail Telephone WhatsApp
Product Details

Swellex Hydraulic Bolt Key Features


Installation is rapid and effortless


No resin or grout is necessary


Remains stable despite blasting vibrations and varying rock strengths


Boasts an extensive expansion range, ensuring even load distribution along the hole


Delivers immediate structural support

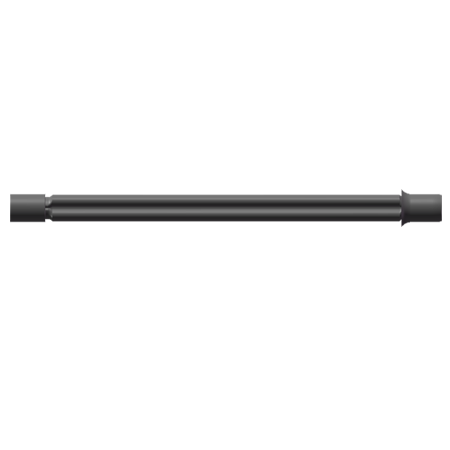

                                         Ordinary Bolt

Two designs of Swellex Hydraulic Bolt

> Swellex Hydraulic Bolt

> New improved Bolt with non-return valve which limits "spring-back" giving increased pull-out resistance and keeps high strength expansion.

Item Description

Tube Thickness(mm)

Inflated Bolt Dia

(mm)

Drill Hole Dia

(mm)

Minimum UTS

(mm)

Elongation%Mass/Meter
27mm24135-38120102kg/m
27mm25445-51160102.8kg/m
37mm

3

5445-51240103.75kg/m


Swellex Hydraulic Bolt Accessories

Domed plate or Star plate.


Swellex Hydraulic Bolt Length

Length: 0.9m to 3.0m or as requested.

> Surface: Black / Plastic coated / Thermal Diffused or as requested.

                         Ordinary Bolt
