Flat plate 200x200x8 for Cable Bolt
- -TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts.
- -Flat plate 200x200x8 for Cable bolt helps to distribute the roof bolt load evenly in all directions to prevent loose strata from falling between rock bolts.
- -Flat plate 200x200x8 for Cable Bolts can be combined with cable bolts to provide support.

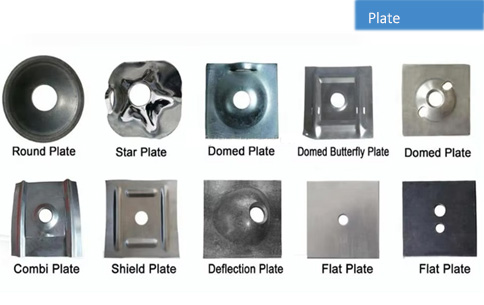

- -Flat plate 200x200x8 for Cable Bolt are available in two different models: single-hole and double-hole, designed to accommodate single-cable bolts and double-cable bolts, respectively.
Flat plate 200x200x8 for Cable Bolt Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRFP | 150 | 150 | 12 | 2.12 | N |
| TRFP | 200 | 200 | 4 | 1.26 | N |
| TRFP | 200 | 200 | 8 | 2.51 | N |
| TRFP | 200 | 200 | 12 | 3.77 | N |
| TRFP | 200 | 200 | 14 | 4.40 | N |
| TRFP | 200 | 200 | 16 | 5.02 | N |
Flat plate 200x200x8 for Cable Bolt Features&Advantages
Custom sizes are available to meet specific customer needs.
Ideal for use in mines with low overhead space.
Suitable for relatively flat rock surfaces.
Appropriate for locations where minimal or no angular adjustment is required.
Multi-hole plates are available for securing breather tubes and grout tubes when used with cable bolts.
Offered in either a black finish or hot-dip galvanized for added durability.
Flat plate 200x200x8 for Cable Bolt Package

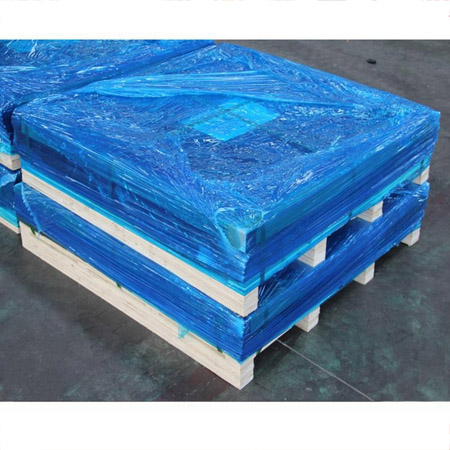

Flat plates are packed with plywood box, steel pallets & wrapping films.
