Flat plate
- -TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts.
- -TONRY plate helps to distribute the roof bolt load evenly in all directions to prevent loose strata from falling between rock bolts.
- -Flat plates can be combined with cable bolts to provide support.

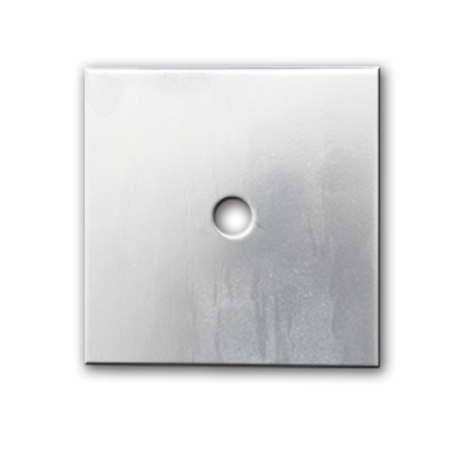

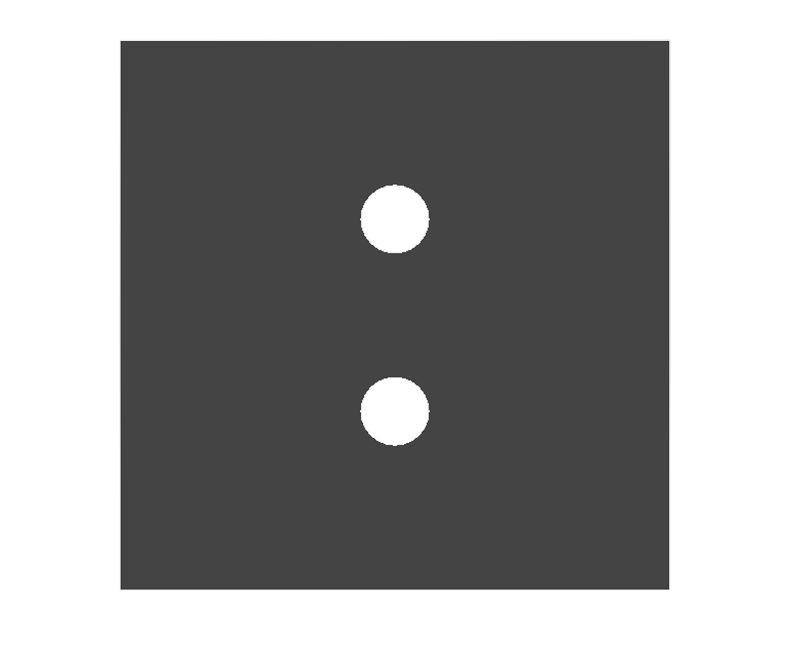

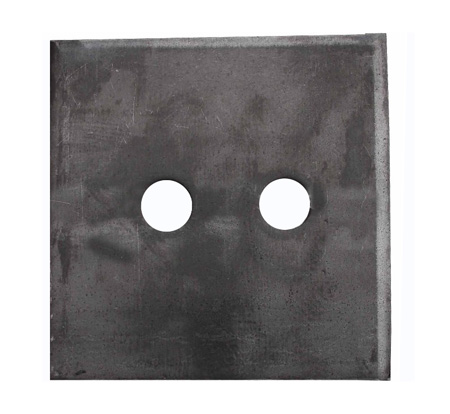

- -Flat plates are available in two different models: single-hole and double-hole, designed to accommodate single-cable bolts and double-cable bolts, respectively.
Product Details
Flat plate Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRFP | 150 | 150 | 12 | 2.12 | N |
| TRFP | 200 | 200 | 4 | 1.26 | N |
| TRFP | 200 | 200 | 8 | 2.51 | N |
| TRFP | 200 | 200 | 12 | 3.77 | N |
| TRFP | 200 | 200 | 14 | 4.40 | N |
| TRFP | 200 | 200 | 16 | 5.02 | N |
Flat plate Features&Advantages
Custom sizes can be provided according to the specific needs of customers.
Suitable for mines with limited overhead space.
Appropriate for use on mostly flat rock surfaces.
Ideal for areas requiring minimal to no angular adjustment.

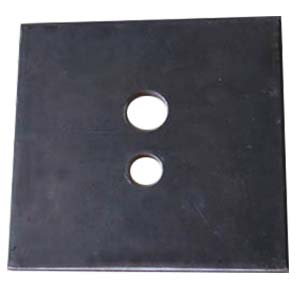

Multi-hole plates are offered to secure both breather tubes and grout tubes when used with cable bolts.
Offered with a choice of black or hot-dip galvanized finish.
Flat plate Package

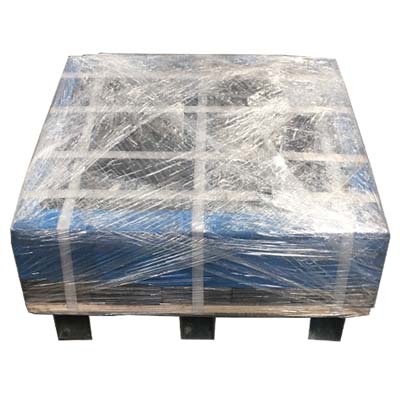

Flat plates are packed with plywood box, steel pallets & wrapping films.
