High Strength Solid Deformed Bar
High Strength Solid Deformed Bar
Product Details
Key Features

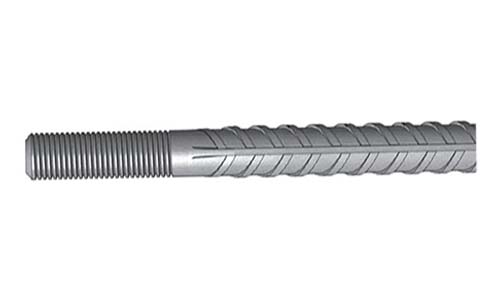

Made of hot rolled reinforcing bar which has rib deformation
The Solid Deformed Bar has a standard rolled thread at one end
Suitable for using with either resin capsule or grout
Diameter 16mm/18mm/20mm/24mm can be supplied
Available in black or hot dip galvanized
Mechanical Properties-24mm
| Properties | Minimum | Typical | ||
| Yield Strength | 500MPa | 245kN | 540MPa | 260kN |
| Tensile Strength | 630MPa | 308kN | 665MPa | 327kN |
| Elongation A% | 15% | 20% | ||
| Mass Per Meter | 3.61kgs | Cross Sectional Area | 460m㎡ | |
| Bar Core Diameter | 24.2mm | Major Bar Diameter | 27.2m | |
| Rolled Thread | M24X3.0 Pitch | Nut Breakout Torque | 140-175Nm | |
Notes: Tensile strength of thread end: 200kN MIN

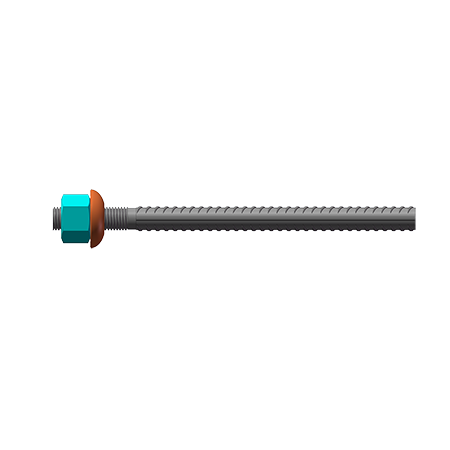

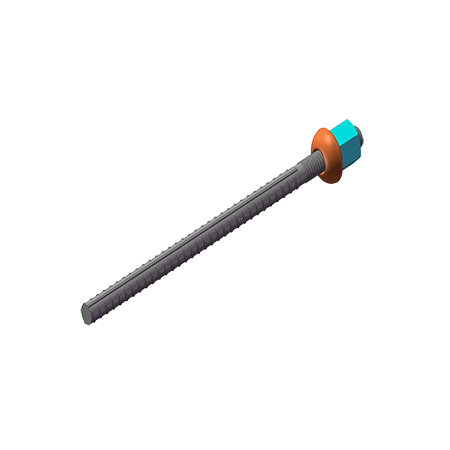

Bearing plate, Nut, Domed ball, Anti-friction washer
Length & Package
Length: 450-3000mm as specified
Package: 100pcs —300pcs per bundle as specified
Others: Other dimensions and designs can be customized to suit particular applications.
