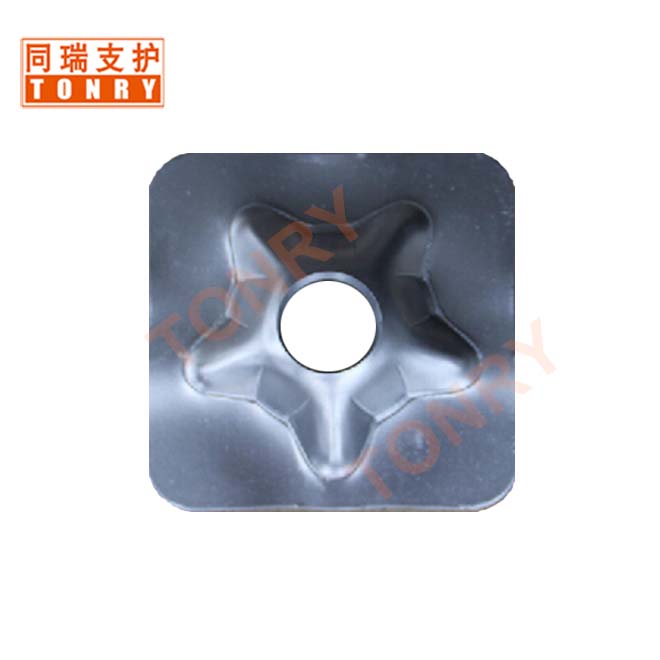

Galvanized Star Plate
- -Galvanized Star Plate is made from hot-rolled steel extruded by star mold.
- - TONRY specializes in creating an extensive selection of plates and combination platescompatible with a variety of rock bolts.
- -Galvanized Star Plate is engineered to evenly distribute the load from the roof bolt in all directions, effectively preventingloose strata from collapsing between rock bolts.
- -The Galvanized Star Plate can resist warping under high pressure.
Galvanized Star Plate Specifications
Plate Type | Length (mm) | Width (mm) | Thickness (mm) |
TRSP | 150 | 150 | 4 |
TRSP | 150 | 150 | 5 |
TRSP | 150 | 150 | 6 |
TRSP | 200 | 200 | 4 |
TRSP | 200 | 200 | 5 |
TRSP | 200 | 200 | 6 |
Galvanized Star Plate Features&Advantages
Offered with a dog ear feature for suspending service lines
Designed with rounded corners to minimize mesh damage during loading
The dome shape allows for 18° alignment angles when fitting rock bolts with a domed ball washer
Provided in various sizes to meet customer needs
Enhanced bearing capacity due to the dome configuration

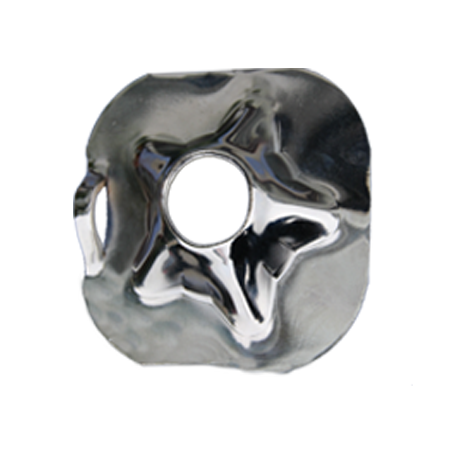

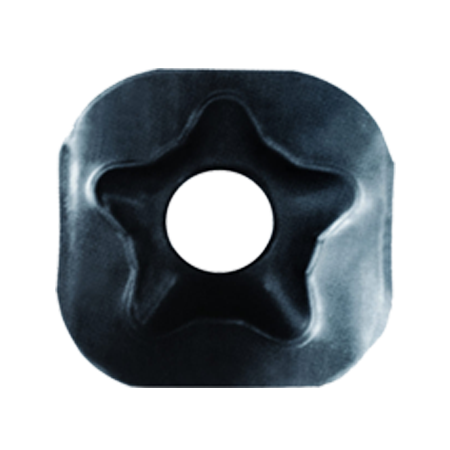

Choice of black or hot dip galvanized finishes
Galvanized Star Plate Package
Galvanized Star Plate are packed with wire slips, plywood box, steel pallets & wrapping films.
