Mining Welded Wire Mesh
- -Mining Welded Wire Mesh is made of high quality steel wire through automatic process and sophisticated welding technique, laid horizontally and vertically. The finished products is strong welding, insistence and flat with sturdy structure.
- -Mining Welded Wire Mesh is available in multiple configurations, featuring various wire diameters and spacings.
- -Provide support for bolts and plates.
- -Edges are neatly cut to minimize wire overhang, reducing the risk of injury.
Mining Welded Wire Mesh Key Features
Wire diameters, spacing, and dimensions can be customized to suit particular applications.
Suitable for shotcrete applications.
3. Customised sheets available with double or additional wires if requested.
4. Trimmed edges to ensure there is limited overhang of wire to cause injury when handling.
5. Customised paint lines along the modules to suit roof bolt patterns.
Mesh Sheet Length (mm) | Mesh Sheet Width (mm) | Cross Wire Diameter (mm) | Longitudinal Wire Diameter (mm) | Wire Aperture (mm) |
1500 | 1200 | 3.15 | 3.15 | 50x50 |
2000 | 1300 | 4 | 4 | 50x75 |
3100 | 1500 | 4.15 | 4.15 | 75x75 |
3300 | 1700 | 4.9 | 4.9 | 100x100 |
4000 | 2400 | 5.6 | 5.6 | 100x150 |
5000 | 2500 | 6.0 | 6.0 | 150x150 |
… | 8.0 | 8.0 | 200x200 |
Mining Welded Wire Mesh Mechanical Properties
Component | Strength | Standard |
Wire | Tensile 500-750MPa | AS/NZS4671:2001 |
Weld Shear Strength | ISO 15630-2 | |
Galvanizing | AS/NZS534-2006 |

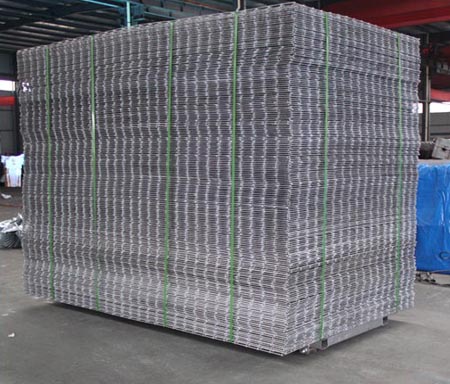

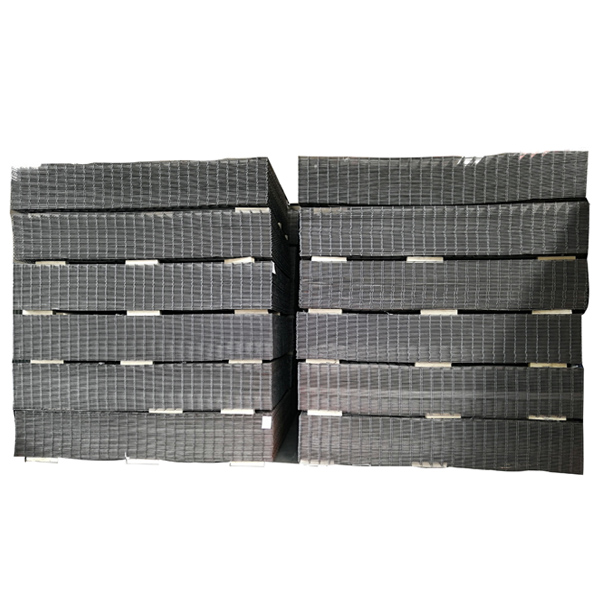

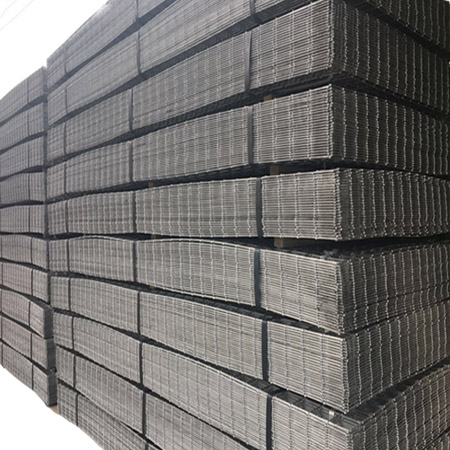

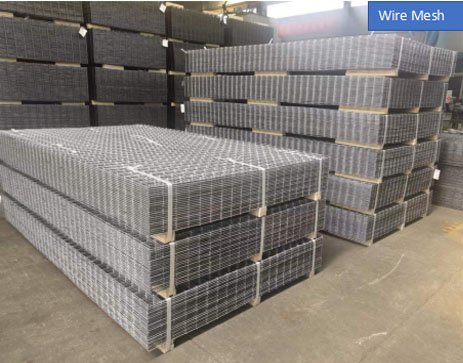

Mining Welded Wire Mesh Packaging:
1. Steel or Fiber strapping.
2. Bundle sizes to suit the customer, generally packs of 50pcs.
