Weld Wire Mesh
- -Weld Wire Mesh is made of high quality steel wire through automatic process and sophisticated welding technique, laid horizontally and vertically. The finished products is strong welding, insistence and flat with sturdy structure.
- -Provide support for bolts and plates.
- -The weld wire mesh is available in multiple configurations, featuring various wire diameters and spacings.
- -Edges are neatly cut to minimize wire overhang, reducing the risk of injury.
Weld Wire Mesh Key Features
1. Wire diameters, spacing, and dimensions can be customized to suit particular applications.
2. Customised sheets available with double or additional wires if requested.
3. Suitable for shotcrete applications.
4. Customised paint lines along the modules to suit roof bolt patterns.
5. Trimmed edges to ensure there is limited overhang of wire to cause injury when handling.
Mesh Sheet Length (mm) | Mesh Sheet Width (mm) | Cross Wire Diameter (mm) | Longitudinal Wire Diameter (mm) | Wire Aperture (mm) |
| 1500 | 1200 | 3.15 | 3.15 | 50x50 |
| 2000 | 1300 | 4 | 4 | 50x75 |
| 3100 | 1500 | 4.15 | 4.15 | 75x75 |
| 3300 | 1700 | 4.9 | 4.9 | 100x100 |
| 4000 | 2400 | 5.6 | 5.6 | 100x150 |
| 5000 | 2500 | 6.0 | 6.0 | 150x150 |
| … | 8.0 | 8.0 | 200x200 |
Weld Wire Mesh Mechanical Properties
| Component | Strength | Standard |
| Wire | Tensile 500-750MPa | AS/NZS4671：2001 |
| Weld Shear Strength | ISO 15630-2 | |
| Galvanizing | AS/NZS534-2006 |

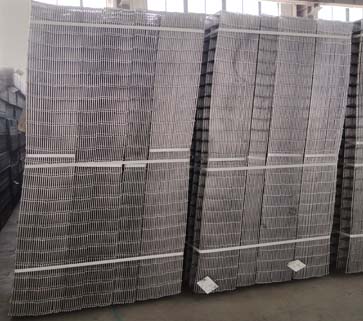

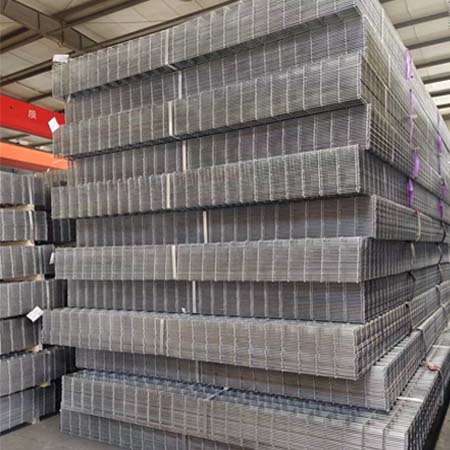

Weld Wire Mesh Packaging:
1. Steel or Fiber strapping.
2. Bundle sizes to suit the customer, generally packs of 50pcs.
