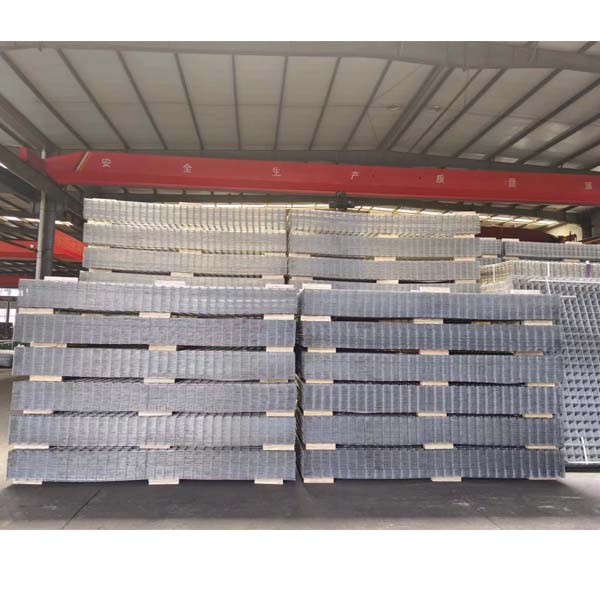

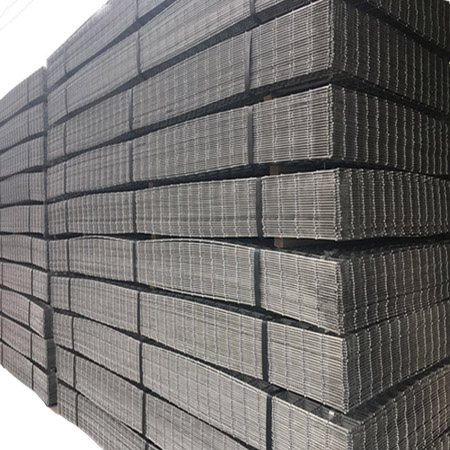

Wire Mesh Ground Support
- -Wire Mesh is made from welding steel wires ranging from 3mm to 8mm in diameter.
- -Edges are neatly cut to minimize wire overhang, reducing the risk of injury.
- -The welded wire mesh is available in multiple configurations, featuring various wire diameters and spacings.
- -Provide support for bolts and plates.
Product Details
Key Features
1. Wire diameters, spacing, and dimensions can be customized to suit particular applications.
2. Customised paint lines along the modules to suit roof bolt patterns.
3. Suitable for shotcrete applications.
4. Trimmed edges to ensure there is limited overhang of wire to cause injury when handling.
5. Customised sheets available with double or additional wires if requested.6+
6. Available in black or hot dip galvanized.
Mesh Sheet Length (mm) | Mesh Sheet Width (mm) | Cross Wire Diameter (mm) | Longitudinal Wire Diameter (mm) | Wire Aperture (mm) |
| 1500 | 1200 | 3.15 | 3.15 | 50x50 |
| 2000 | 1300 | 4 | 4 | 50x75 |
| 3100 | 1500 | 4.15 | 4.15 | 75x75 |
| 3300 | 1700 | 4.9 | 4.9 | 100x100 |
| 4000 | 2400 | 5.6 | 5.6 | 100x150 |
| 5000 | 2500 | 6.0 | 6.0 | 150x150 |
| … | 8.0 | 8.0 | 200x200 |
Mechanical Properties
| Component | Strength | Standard |
| Wire | Tensile 500-750MPa | AS/NZS4671：2001 |
| Weld Shear Strength | ISO 15630-2 | |
| Galvanizing | AS/NZS534-2006 |

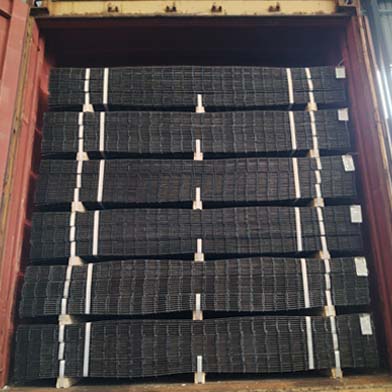

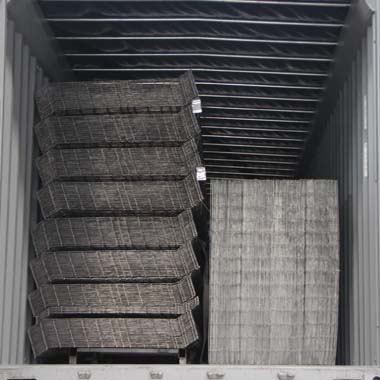

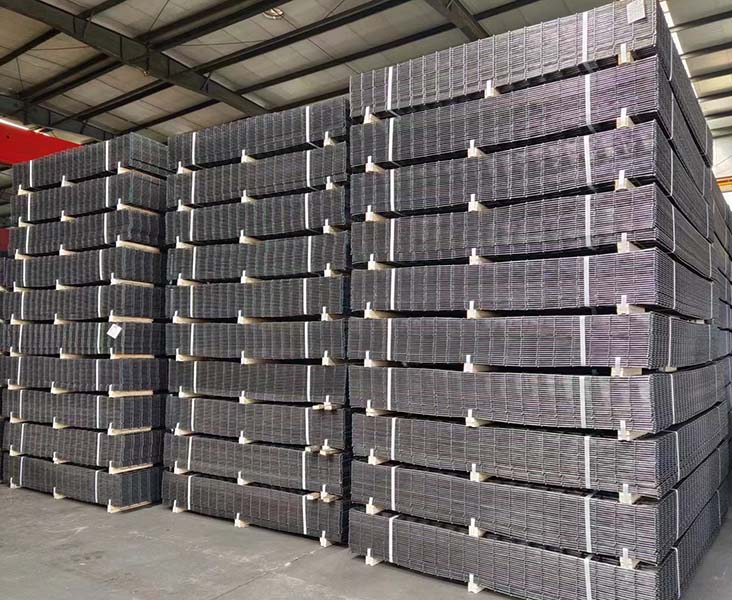

Packaging:
1. Steel or Fiber strapping.
2. Bundle sizes to suit the customer, generally packs of 50pcs.
