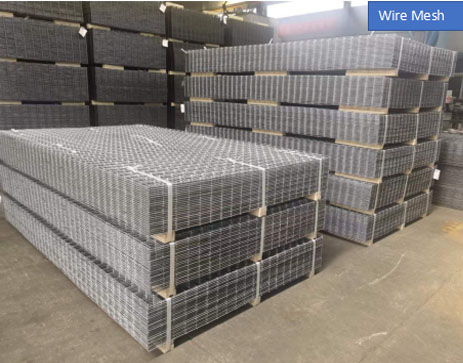

Wire Mesh Mining

  • -Wire Mesh Mining is made of high quality steel wire through automatic process and sophisticated welding technique, laid horizontally and vertically. The finished products is strong welding, insistence and flat with sturdy structure.
  • -Edges are neatly cut to minimize wire overhang, reducing the risk of injury.
  • -The welded wire mesh mining is available in multiple configurations, featuring various wire diameters and spacings.
  • -Provide support for bolts and plates.
Contact Now E-Mail Telephone WhatsApp
Product Details

Wire Mesh Mining Key Features

1. Wire diameters, spacing, and dimensions can be customized to suit particular applications.

2. Customised paint lines along the modules to suit roof bolt patterns.

3. Suitable for shotcrete applications.

4. Trimmed edges to ensure there is limited overhang of wire to cause injury when handling.

5. Customised sheets available with double or additional wires if requested.6+

Mesh Sheet Length

(mm)

Mesh Sheet Width

(mm)

Cross Wire Diameter

(mm)

Longitudinal Wire Diameter

(mm)

Wire Aperture

(mm)

150012003.153.1550x50
200013004450x75
310015004.154.1575x75
330017004.94.9100x100
400024005.65.6100x150
500025006.06.0150x150

8.08.0200x200

                                             Wire Mesh Mining

Wire Mesh Mining Mechanical Properties


ComponentStrengthStandard
WireTensile 500-750MPaAS/NZS4671:2001
Weld Shear Strength

ISO 15630-2
Galvanizing
AS/NZS534-2006

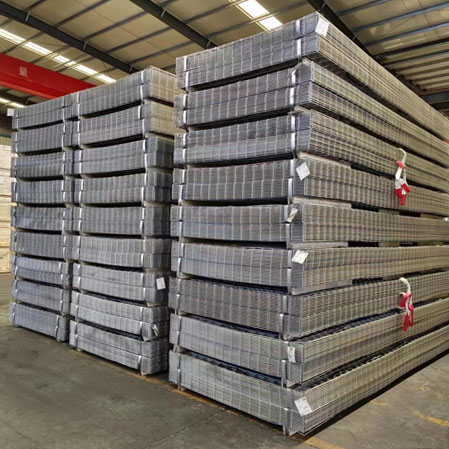

Wire Mesh Mining Packaging:

1. Steel or Fiber strapping.

2. Bundle sizes to suit the customer, generally packs of 50pcs.

                                             Wire Mesh Mining
