Yielding Cable Bolt

Yielding Cable Bolt is made of grade 1860Mpa steel wires, which can be made into plain cable bolts and bulbed cable bolt.
Contact Now E-Mail Telephone WhatsApp
Product Details

Yielding Cable Bolt Functions

Yielding Cable Bolts could provide higher tensile strength,anti-shearing capacity and incomparable bending capacity,

and could prevent the lateral movement of strata.


Yielding Cable Bolt Accessories

Fish Hooks

Expansion shell

Grouting tube

Breathing tube

Bearing plate




Yielding Cable Bolt Application

Mines

Tunnels

Slopes

Places where need ground support

Yielding Cable Bolt Length & Package

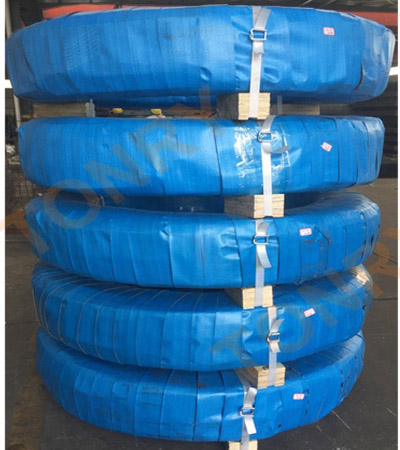

Length:500mm to 6200mm in pieces or in coils

Package:20 pcs each bundle

As customer’s requirement

                         Bulbed Cable Bolt

How to work


        Ground conditions must be carefully assessed before beginning.



        Create a hole that matches the bolt's diameter and length, ensuring it is 200mm to 500mm shorter than the bolt itself.



        Secure a breather tube along the entire bolt, allowing it to extend roughly two meters out of the hole.



        Fix approximately one meter of grout tube to the cable bolt's end, leaving enough extra length for pump connection.



        Place the cable bolt into the hole and seal it off to prevent grout loss during pumping.



        Attach the grout tube to the pump and submerge the breather tube in a water container before starting the pump.

        Observe the air bubbles escaping; once they cease, it indicates the hole is fully grouted.



        After the grout sets, the cable bolt can be tensioned.
