Friction Stabilizer Bolt

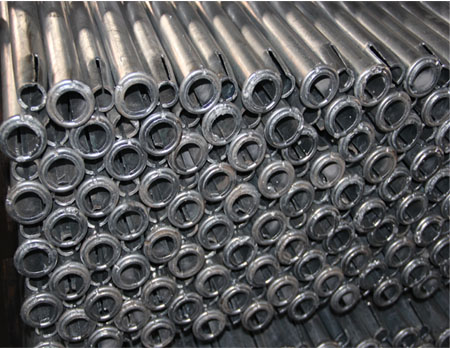

- -Friction Stabilizer Bolt made from a strip of high-tensile steel, is roll-formed into a C-shape featuring a longitudinal slot for engagement. Designed with one end tapered to simplify insertion into a drill hole, the opposite end is securely welded to a ring that anchors the bearing plate.
- -Thermal diffusion galvanizing is available for the friction bolt.
- -Usually combined with domed plates, provides anchoring force for rock strata.
- -Friction Stabilizer Ground Support undergoes very stringent tensile testing to ensure product quality.
Friction Stabilizer Bolt is a frictional ground support system. When Friction Stabilizer Ground Support is inserted into a drilling hole with a smaller diameter, the slot partially closes and the bolt diameter is compressed, which creates radial forces on the rock roof surface along the whole length and firmly holds the rock.
Friction Stabilizer Bolt Features&Advantages
Made from high-strength steel band
Immediate frictional Support in axial and radial
Independent support without a plate
Easy for installation
Simple design, cost-saving
Available in black, cold galvanizing, or hot dip galvanized
Friction Stabilizer Bolt Mechanical Properties
| Technical Data | TRFB33 | TRFB39 | TRFB42 | TRFB47 | |
| Drill hole diameter (mm) | 30-32 | 35-38 | 38-40 | 43-45.5 | |
| Min.Yield strength (kN) | 80 | 90 | 100 | 120 | 135 |
| Min.Tensile strength (kN) | 100 | 120 | 132 | 165 | 180 |
| Typ.Tensile strength (kN) | 120 | 130 | 150 | 180 | 200 |
| Elongation (A%) | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 |
| Typ.Anchorage (ton/m) | 4-6 | 4-7 | 5-8 | 6-10 | |
| Bearing plate (mm) | 150x150x4 | 150x150x4 | 150x150x4.5 | 150x150x5 | |
Friction Stabilizer Bolt Accessories
Bearing plate, Driver, Pull collar.
Friction Stabilizer Bolt Length & Package
Length:450-3000mm as specified

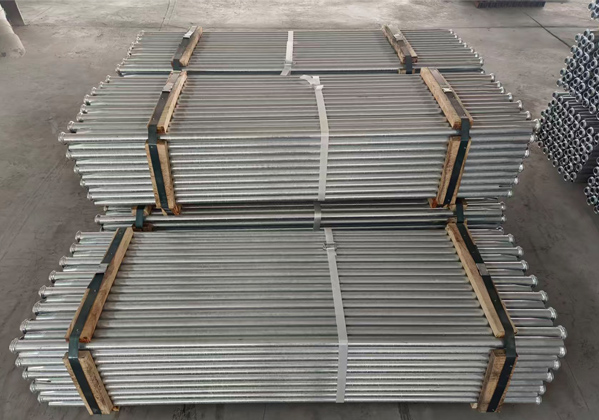

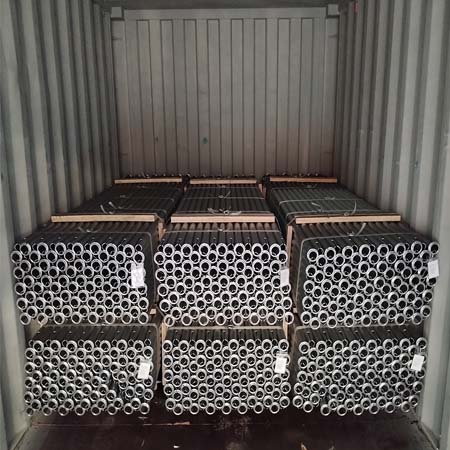

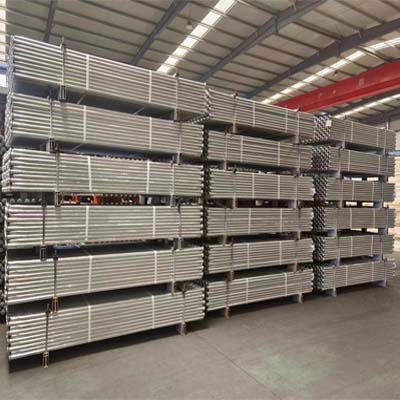

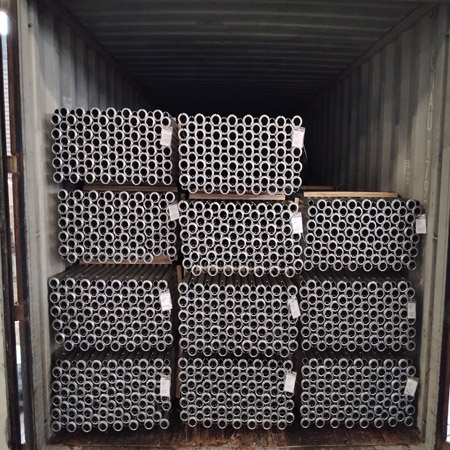

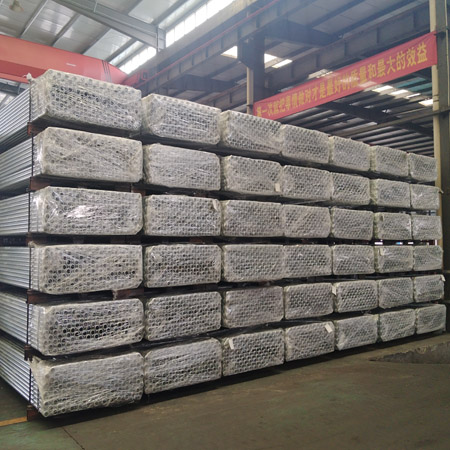

Package:100pcs — 300pcs each bundle as specified
Friction Stabilizer Bolt Applications
Mines
Tunnels
Slopes
Places where need ground support
How to work
Firstly, conduct an assessment of the ground conditions.
Select the appropriate bit and bore a hole by the diameter and length of the bolt, as well as the specified drilling method.
Ensure the hole's length exceeds the friction bolt's length by at least 150mm.
Affix a plate onto the friction bolt, positioning the dome against the ring and the tapered end towards the front.
Install the friction bolts so they are perpendicular to the rock's surface.
Insert the driver dolly into the bolt and drive the friction bolt into the hole until the plate is securely against the rock surface.
Avoid striking the friction bolt once the plate is snugly attached to the rock surface to prevent damage to the end of the bolt.
After installation, conduct pull tests to verify the initial anchorage effectiveness of the friction bolts.
