Galvanized Split Set Bolt

  • -Galvanized Split Set Bolt, made from a strip of high-tensile steel, is roll-formed into a C-shape featuring a longitudinal slot for engagement. Designed with one end tapered to simplify insertion into a drill hole, the opposite end is securely welded to a ring that anchors the bearing plate.
  • -Galvanized Split Set Bolt undergoes very stringent tensile testing to ensure product quality.
  • -Usually combined with domed plates, provides anchoring force for rock strata.
  • -Thermal diffusion galvanizing is available for the Galvanized Split Set Bolt.
Contact Now E-Mail Telephone WhatsApp
Product Details

Galvanized Split Set Bolt  Functions

Friction Anchor Ground Support is a frictional ground support system. When Friction Anchor Ground Support is inserted into a drilling hole with a smaller diameter, the slot partially closes and the bolt diameter is compressed, which creates radical forces on the rock roof surface along the whole length and firmly holds the rock.



Galvanized Split Set Bolt Features&Advantages

Made from high-strength steel band

Immediate frictional Support in axial and radial

Independent support without a plate

Easy for installation

Simple design, cost-saving

Available in black, cold galvanizing, or hot dip galvanized


Galvanized Split Set Bolt Mechanical Properties


Technical DataTRFB33TRFB39TRFB42TRFB47
Drill hole diameter (mm)30-3235-3838-4043-45.5
Min.Yield strength (kN)8090100120
135
Min.Tensile strength (kN)100120132165180
Typ.Tensile strength (kN)120130150180200
Elongation (A%)≥20≥20≥20≥20
Typ.Anchorage (ton/m)4-64-75-86-10
Bearing plate (mm)150x150x4150x150x4150x150x4.5150x150x5

Galvanized Split Set Bolt Accessories

      Pull collar,Bearing plate, Driver.


Galvanized Split Set Bolt Length & Package

Length:450-3000mm as specified

Package:100pcs — 300pcs each bundle as specified

Friction Anchor Ground SupportFriction Anchor Ground Support

Galvanized Split Set Bolt Applications

Mines

Tunnels

Slopes

Places where need ground support


How to work

        Firstly, conduct an assessment of the ground conditions.


      Insert the driver dolly into the bolt and drive the friction anchor ground support into the hole until the plate is securely against the rock surface.



        Select the appropriate bit and bore a hole by the diameter and length of the bolt, as well as the specified drilling method.


        Affix a plate onto the friction bolt, positioning the dome against the ring and the tapered end towards the front.


       Ensure the hole's length exceeds the friction anchor ground support's length by at least 150mm.



        Install the Galvanized Split Set Bolt so they are perpendicular to the rock's surface.



        Avoid striking the Friction Anchor Ground Support once the plate is snugly attached to the rock surface to prevent damage to the end of the Galvanized Split Set Bolt.



        After installation, conduct pull tests to verify the initial anchorage effectiveness of the Galvanized Split Set Bolt.

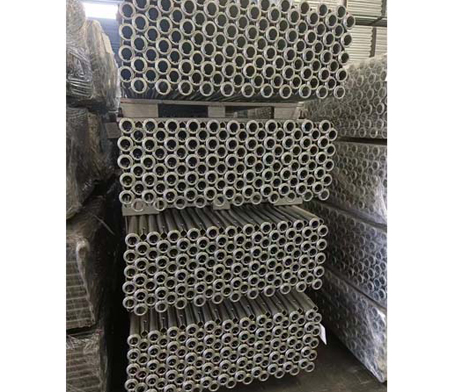

 Galvanized Split Set Bolt Galvanized Split Set Bolt
